Emergency Rescue Intercom System—ABELL European Standard R-50 System

R-50 Digital Backpack Base Station

The European Standard R-50 Digital Backpack Base Station supports single-person backpack carrying and vehicle deployment, enabling rapid establishment of wireless communication networks during emergencies and major incidents, providing secure and reliable communication support at the incident site as quickly as possible.

In special scenarios, the European Standard R-50 Backpack Base Station with the public-private converged version not only enables rapid local networking for command and dispatch, but also connects directly to the rear command center via 2G/3G/4G networks.

Product Features

• Compatible with standard DMR terminals and digital police trunking PDT conventional mode


• Supports European Standard Enhanced Mode for longer communication distance and stronger anti-interference capability; rapid networking on the same frequency without the need for a duplexer


• Built-in 15.6AH large-capacity lithium battery with standby time over 40 hours and 5-5-90 duty cycle lasting up to 30 hours


• Power supply: supports both DC and AC charging modes


• Provides a 12V standard interface for external power input, convenient for vehicle charging/power supply


• The European Standard R-50 Backpack Base Station is compact in size and equipped with a built-in large-capacity lithium battery


• Standard power switch; after being powered off and stored for up to six months, it can still retain at least 80% of its battery capacity, making it an essential device for emergency communication

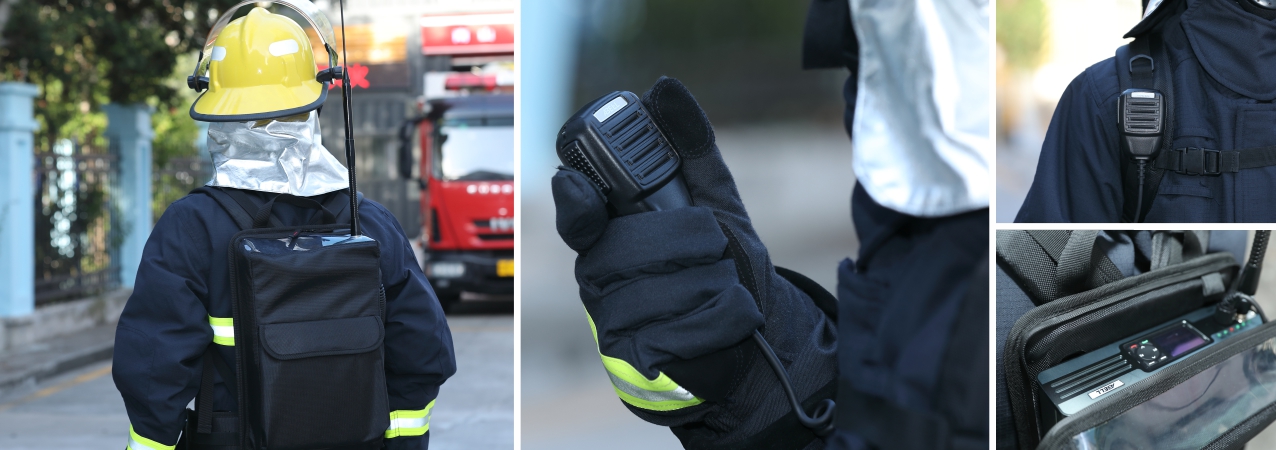

• Customized 1:1 ultra-portable backpack


• DMR and 4G public-private converged communication version (customized version)

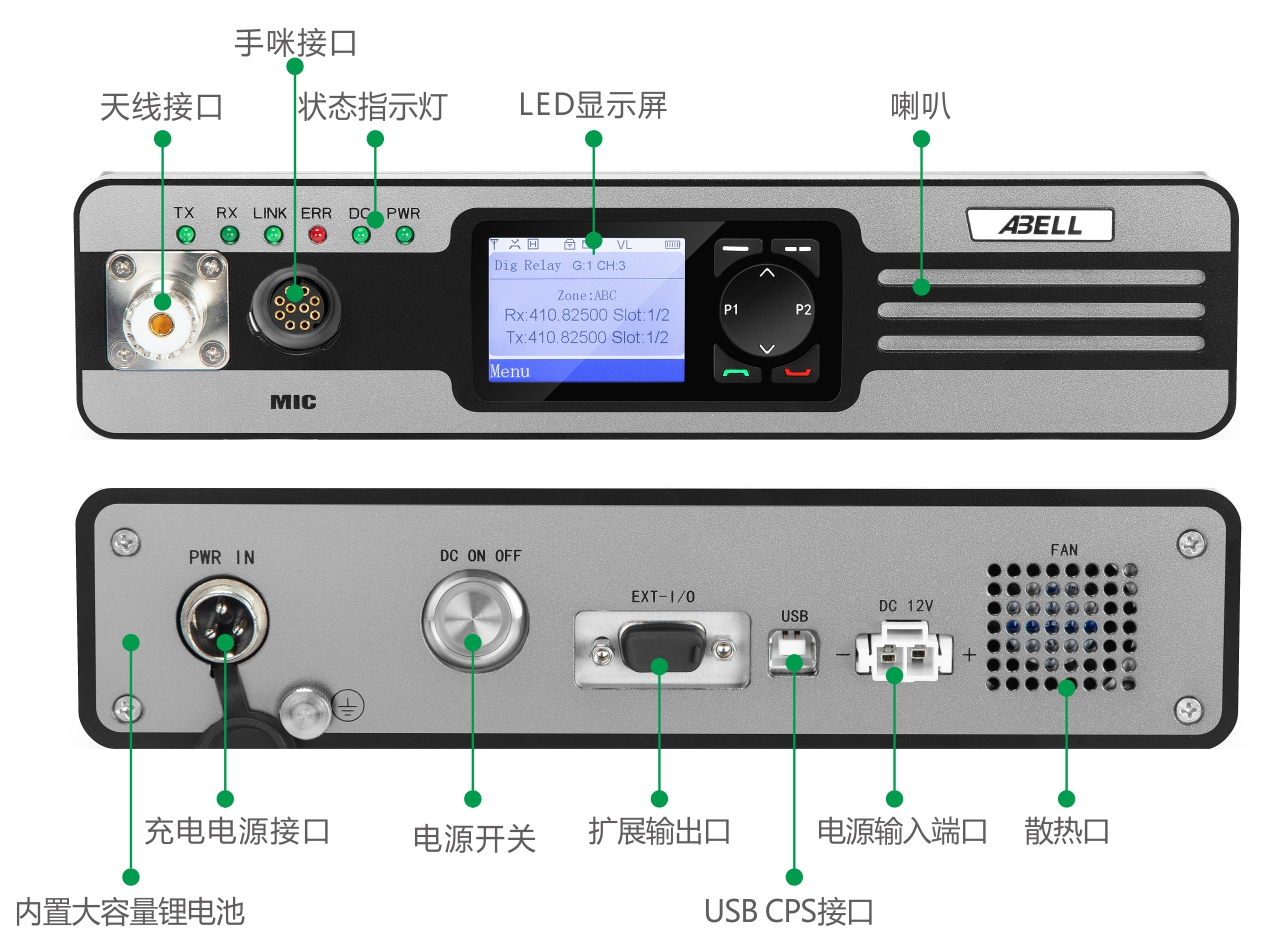

Highly integrated design

Solution

System Working Mode

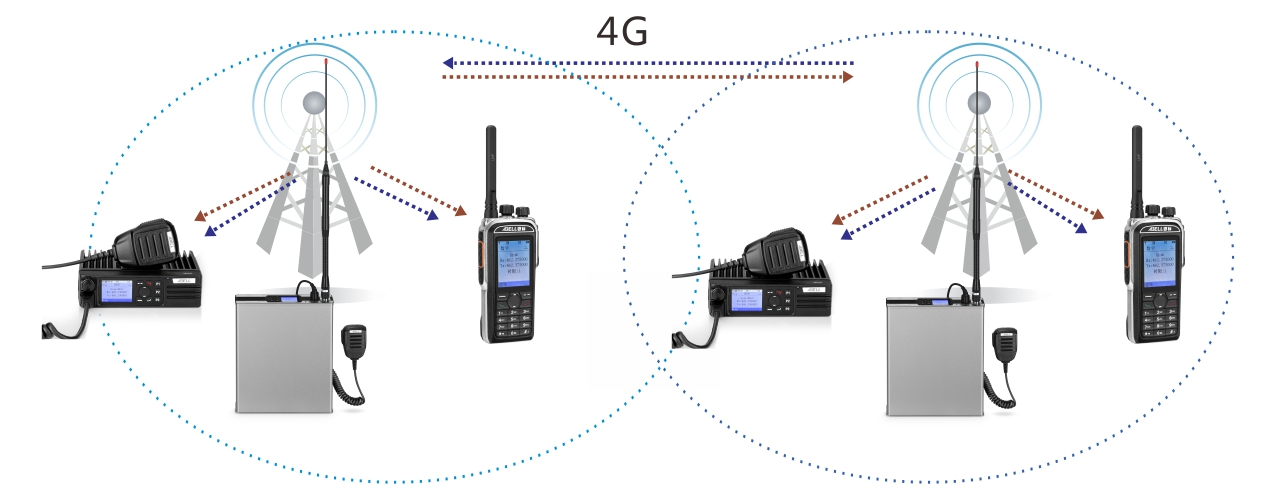

Schematic Diagram of Self-Organizing Network Topology for Dispatch System

Combined use of multiple modes and more devices

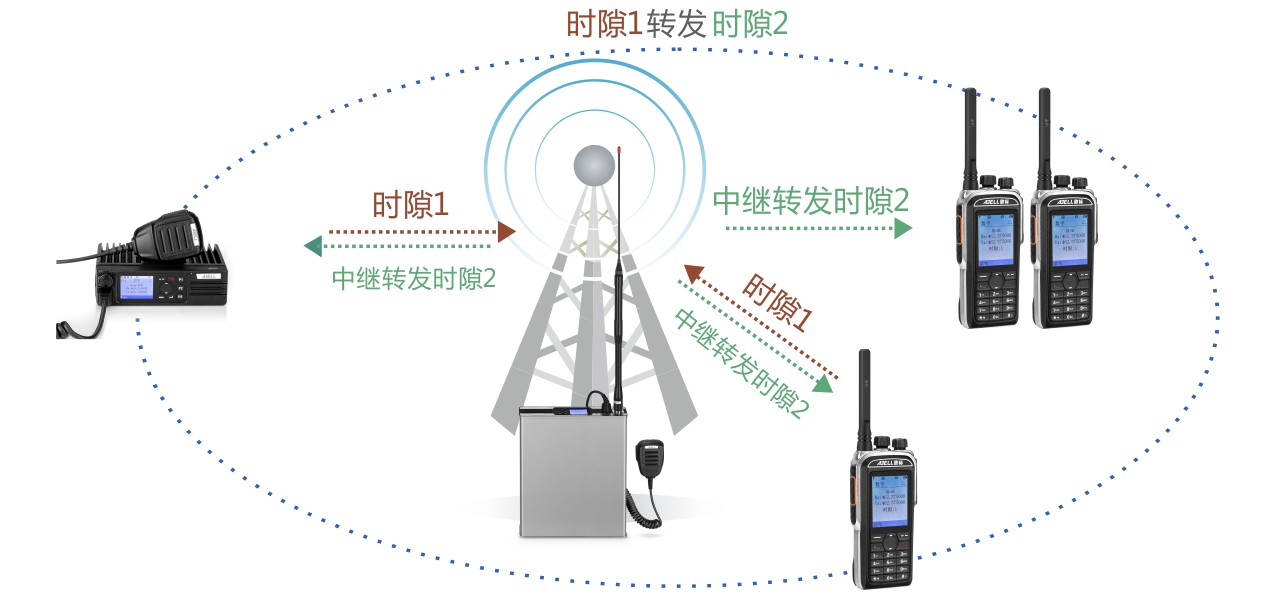

European Standard Enhanced Mode:

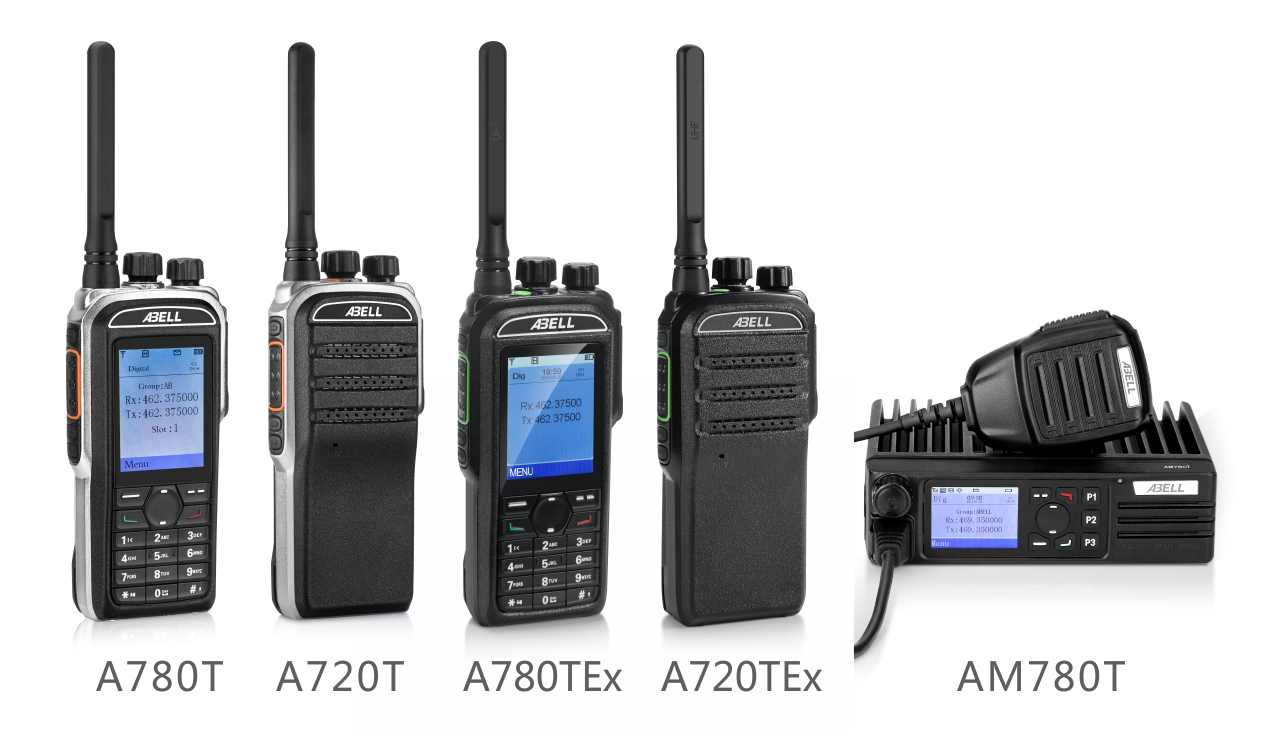

Product series supporting European Standard Enhanced Mode:

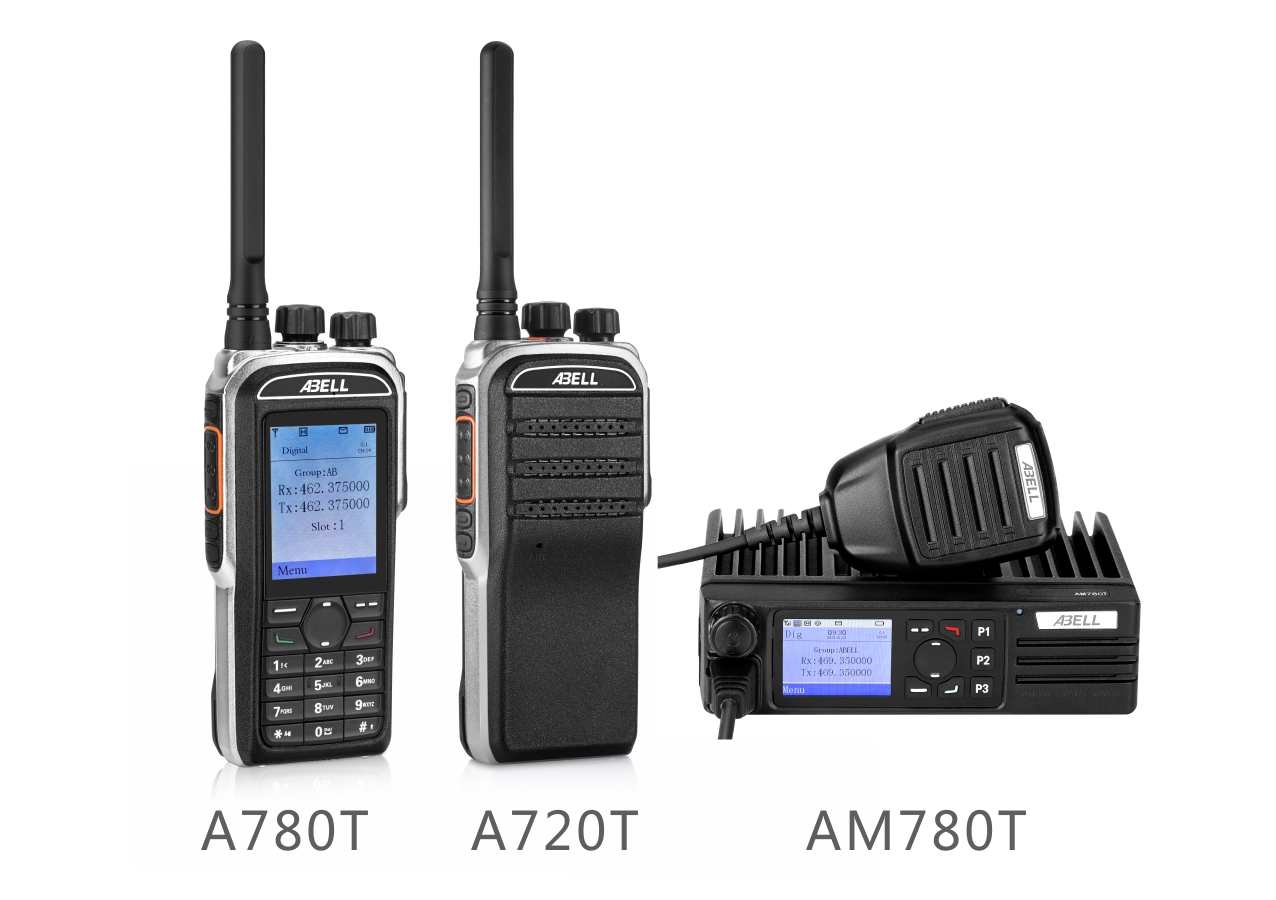

7 series conventional and mobile radios

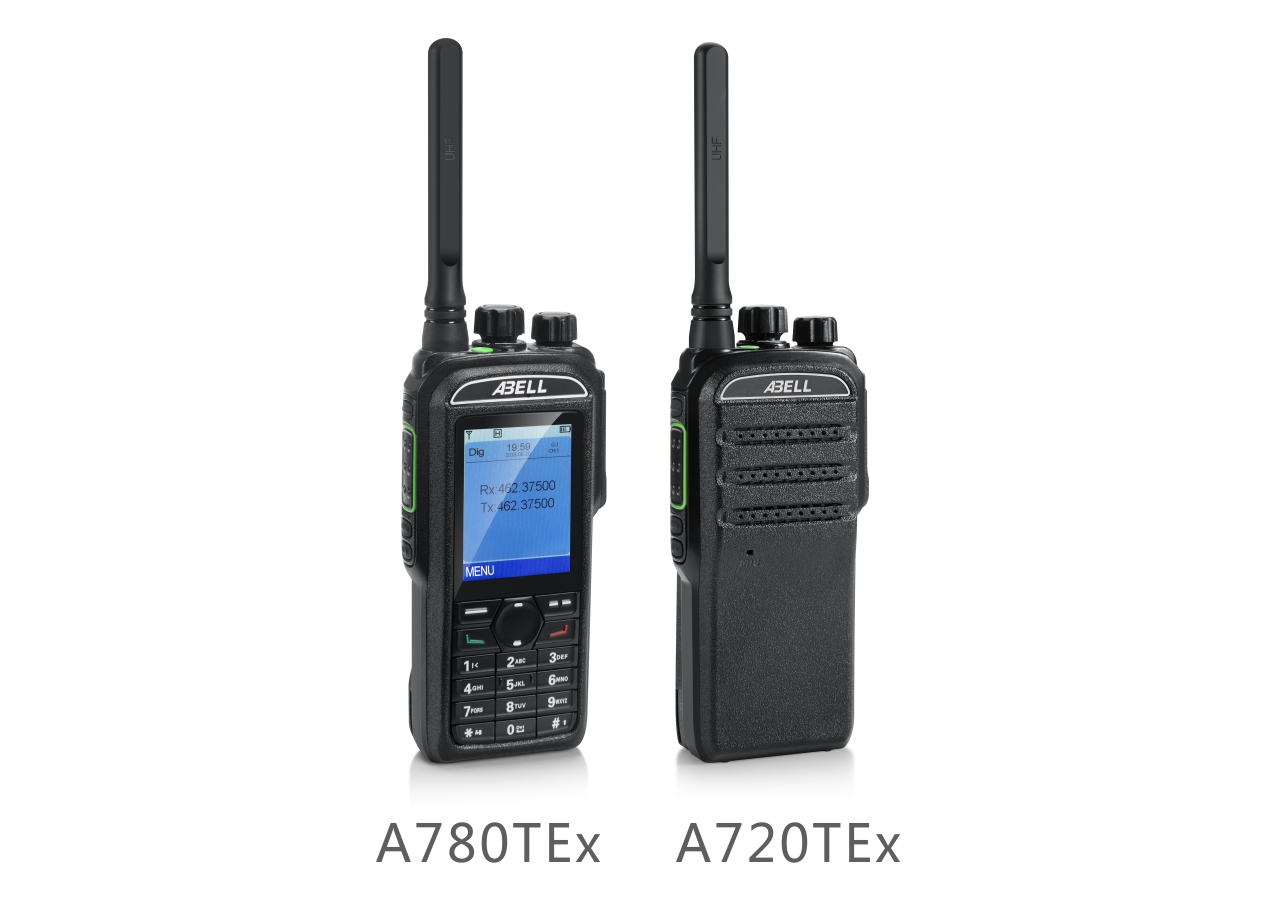

7 series explosion-proof two-way radios

R-50 Backpack Base Station 4G Public-Private Interconnection Version (DMR+4G)

Public Network System:

Built-in Qualcomm 8909 platform, supports Android operating system, supports multiple intercom platforms, 2G/3G/4G full network compatibility

Private Network System:

R-50 Digital Base Station Standard Version

Industry Applications

Armed Police and Border Defense

Emergency Rescue and Disaster Relief

Flood Control and Firefighting

Military Exercises

Forest Fire Prevention
