ABELL R-50 Portable Single-Frequency Digital Repeater Deployed in a Large Metallurgical Plant Project

Efficient Spectrum Utilization, Full-area Reliable Communication

Recently, ABELL completed the delivery and deployment of its wireless communication system for a large-scale integrated metallurgical production base in East China. The entire project utilizes R-50 portable digital base stations to build a dedicated dispatch communication network for the plant area. Leveraging the product's unique...Single-frequency relay core technology

In the current industry context of tightening radio spectrum resources and stricter frequency approval and control, this solution not only perfectly solves the problem of full-area signal coverage in the complex environment of metallurgical plant areas, but also significantly saves spectrum resources and reduces the frequency application and maintenance costs for enterprises, creating a lightweight, highly compliant and highly reliable new solution for private network communication in heavy industrial plants.

This project is a large-scale metallurgical production base integrating smelting, rolling, warehousing, underground pipe corridors, and emergency repair. The plant area is densely packed with steel structure workshops, giant smelting equipment, and metal partitions and pipelines intertwined. Coupled with strong electromagnetic interference during the production process, traditional wireless communication solutions have many shortcomings that cannot be avoided.

1. There are many signal coverage blind spots and insufficient communication distance.Traditional dual-frequency repeaters require a duplexer, and signal transmission suffers from natural power attenuation. The high-temperature steel structure in the factory area significantly weakens the wireless signal, resulting in long-term communication interruptions in deep workshops, underground conveyor corridors, and surrounding raw material storage areas. This hinders communication for production scheduling, equipment inspection, and emergency response, posing potential safety hazards.

2. High spectrum resource consumption increases approval difficultyThe current radio management regulations clearly state that the spectrum is a scarce national resource. Local radio commissions have tightened frequency approval standards. Dual-band repeaters need to occupy two independent frequency points for transmission and reception. This not only makes the license application process cumbersome and time-consuming, but also requires continuous payment of dual-band occupancy fees, resulting in high long-term operating costs.

3. The equipment is bulky and difficult to deploy and modify.Conventional industrial repeaters are bulky and heavy, and their locations in the factory area are scattered with limited space for mounting. They cannot be quickly set up in tunnels or temporary repair sites. If new coverage points are needed, the construction period for civil engineering and cabinet matching is long, which cannot meet the dynamic expansion needs of the factory area.

4. Poor stability in high-temperature and high-noise environments, making call security unreliable.The smelting workshop is exposed to high temperatures all year round. Traditional relay equipment is prone to overheating and power reduction or even shutdown when operating under high load for a long time. The factory area is full of people and there is no encrypted intercom, which can easily lead to the leakage of production scheduling information and cannot meet the needs of secure industrial communication.

Based on the above-mentioned pain points, after multiple rounds of product comparison and on-site testing, the project team finally selected the ABELL R-50 portable digital base station as the core communication equipment to complete the upgrade of wireless coverage throughout the factory area.

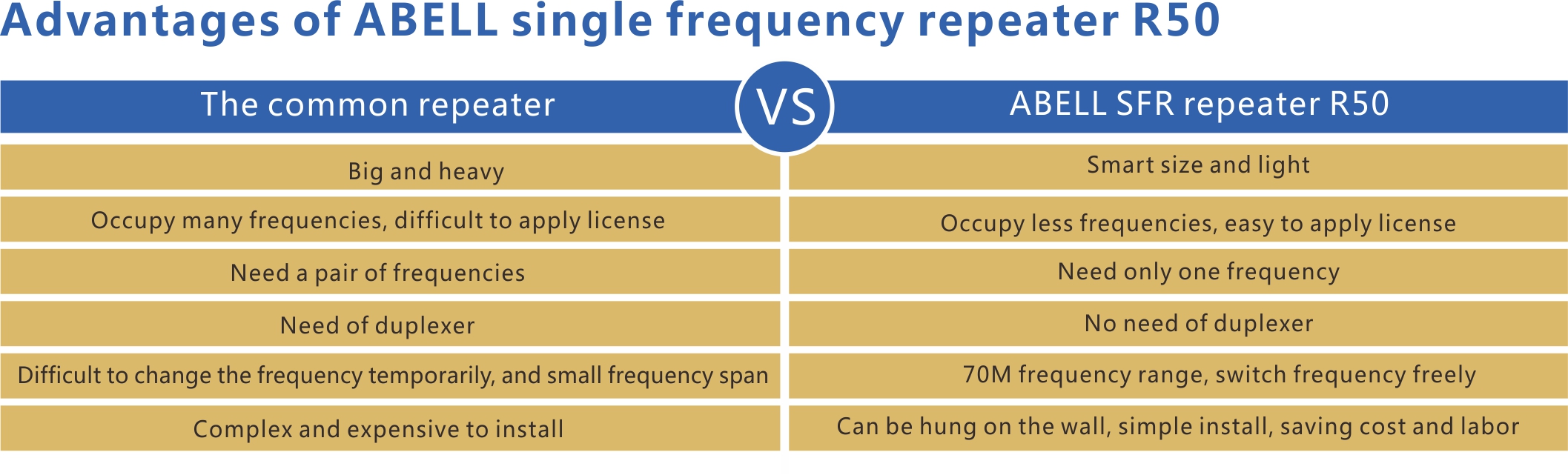

The ABELL R-50 is a lightweight DMR TDMA digital repeater designed for industrial, emergency, and large-scale park applications.Single-frequency repeater, ultra-portable, duplexer-free, wide power adjustableFour core features perfectly suited for the harsh operating environments of metallurgical plants:

R-50 Industry-Leading Support Single-frequency repeater modeIt only requires one frequency point to complete signal transmission and reception, which directly halves the spectrum occupancy compared to traditional dual-frequency repeaters.

1. Lowering the threshold for radio license applications eliminates the need to apply for two sets of frequencies simultaneously, significantly shortening the approval cycle.

2. Halving frequency occupancy fees saves enterprises spectrum usage costs in the long run;

3. supplyStandard/ABELL Dual ModeSwitch freely to adapt to different scheduling and management needs:

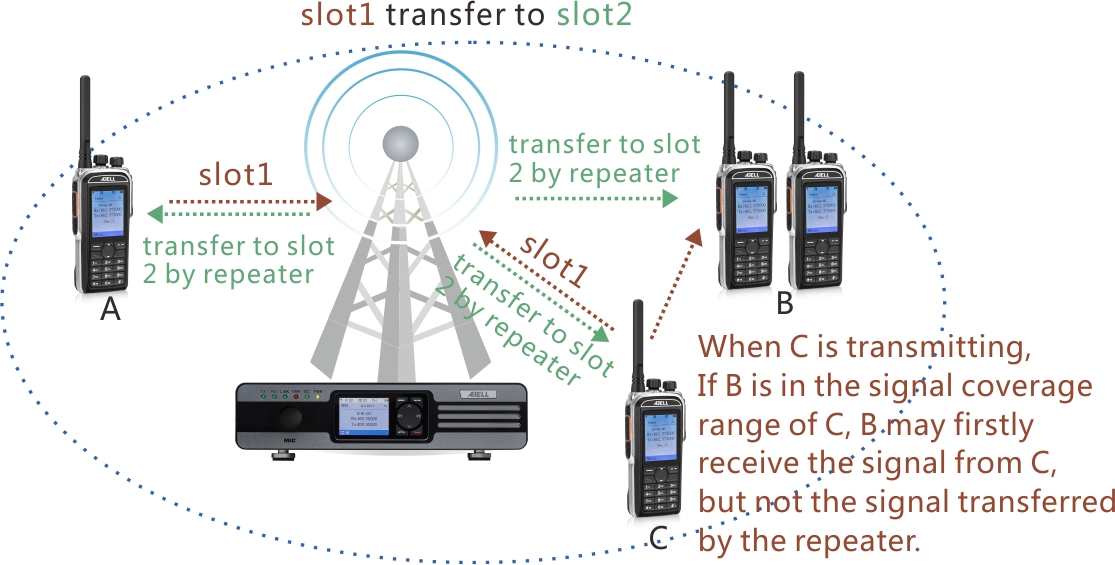

• Standard mode: Handheld terminals can directly connect and communicate at close range, balancing flexible intercom and relay forwarding. The working logic is shown in the following diagram:

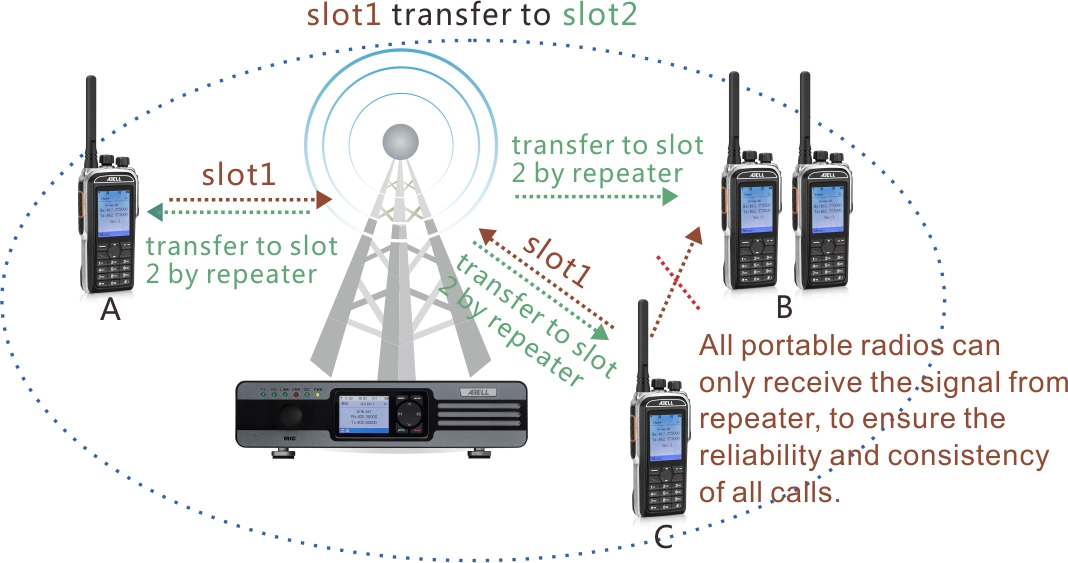

• ABELL Exclusive Mode (with ABELL Digital Terminal):

  Forces all handheld radios to receive only relayed signals, eliminating signal confusion caused by direct terminal connections. Ensures unified communication across the entire plant and synchronized, seamless dispatch instructions, perfectly adapting to the standardized centralized management of metallurgical plants. See the diagram below for network logic:

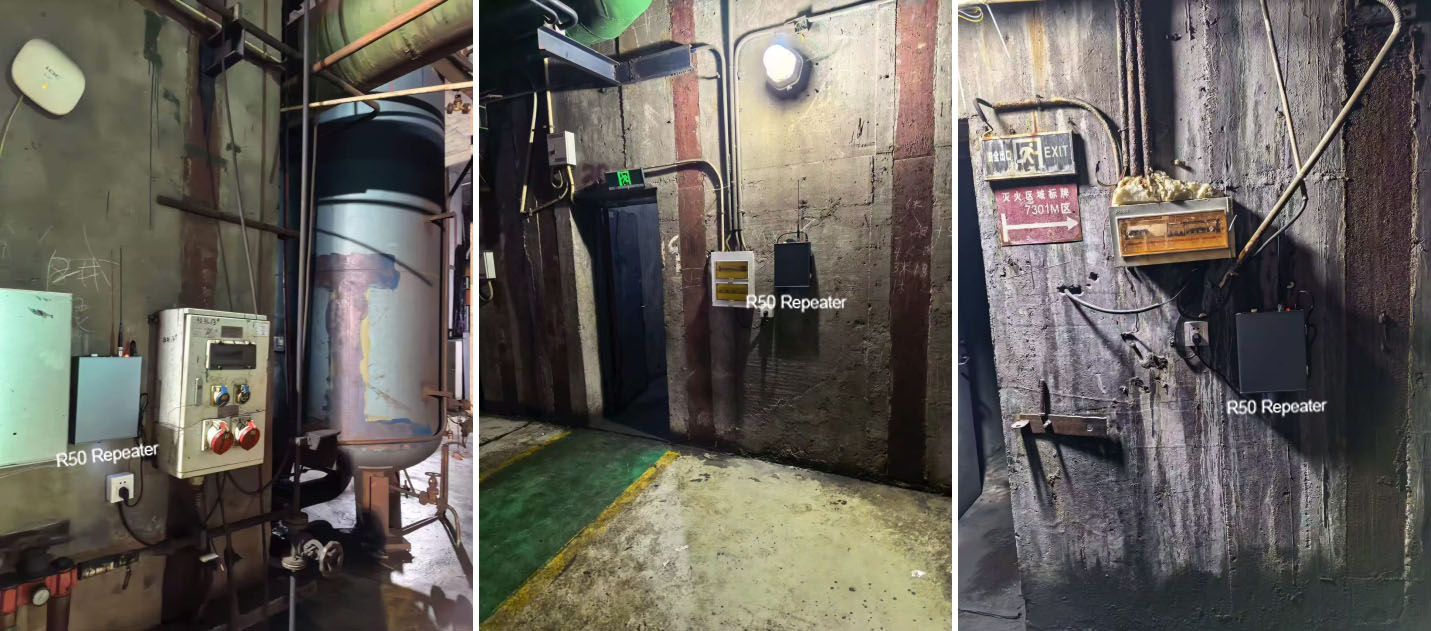

Weighing only 3.2kg and with a volume only 1/4 that of a traditional repeater, this unit comes with a dedicated wall-mounting assembly, eliminating the need for a custom chassis. It can be easily installed on factory walls, in low-voltage wells, tunnel sidewalls, and at temporary repair sites.

1. Power supply compatibility for all scenariosBuilt-in 110V~240V AC power supply, supporting automatic AC/DC switching; reserved 12V DC interface, which can be used with mobile backup batteries and vehicle power supplies, integrating fixed factory area, vehicle inspection and emergency mobile deployment.

2. duplexer-free architectureIt eliminates the cost of purchasing and wiring a matching duplexer, reduces signal link attenuation, offers adjustable power of 20W/10W, and provides lossless output, enabling longer-range coverage in complex steel structure factory areas.

3. 70MHz wide frequency adjustable bandwidthIn the later stages of factory expansion and new locations, the channel frequency can be flexibly switched without the need to remodel the entire set of equipment.












Designed for the consistently high-temperature environment of smelting workshops, it features an intelligent temperature and power control system: automatically activates the cooling fan at 40℃ and automatically reduces the transmission power at 70℃ to prevent overheating and ensure stable 24-hour uninterrupted operation; the entire unit's anti-interference circuitry is optimized to resist electromagnetic interference from large motors and smelting furnaces in the factory, ensuring clear and noise-free calls. It also includes built-in...Digital voice encryption + terminal authenticationThe system employs a dual security mechanism, using fixed-key digital encryption and a ABELL proprietary encryption algorithm to prevent external devices from eavesdropping and unauthorized terminals from accessing the system, thus safeguarding the core information security for production scheduling, equipment maintenance, and emergency response.

1. Large storage capacity: Supports 1600 channels and 100 independent area groups, and can be divided into independent call groups according to multiple departments such as smelting workshop, rolling area, warehousing, operation and maintenance, and emergency response;

2. All types of calls: Supports individual and group calls, and the dispatch center can accurately notify points one by one and issue emergency instructions across the entire region;

3. Simultaneous interpretation of voice and data: Text data and inspection information are transmitted synchronously during the call, enabling voice + data collaborative scheduling;

4. Optional base station mode: With aviation head and hand microphone, fixed duty can be set up in the factory control room, and personnel can be remotely coordinated across the entire area;

5. The 2.0-inch IPS high-definition screen provides real-time visualization of device power, channel, temperature, and operating status, making operation and maintenance convenient.

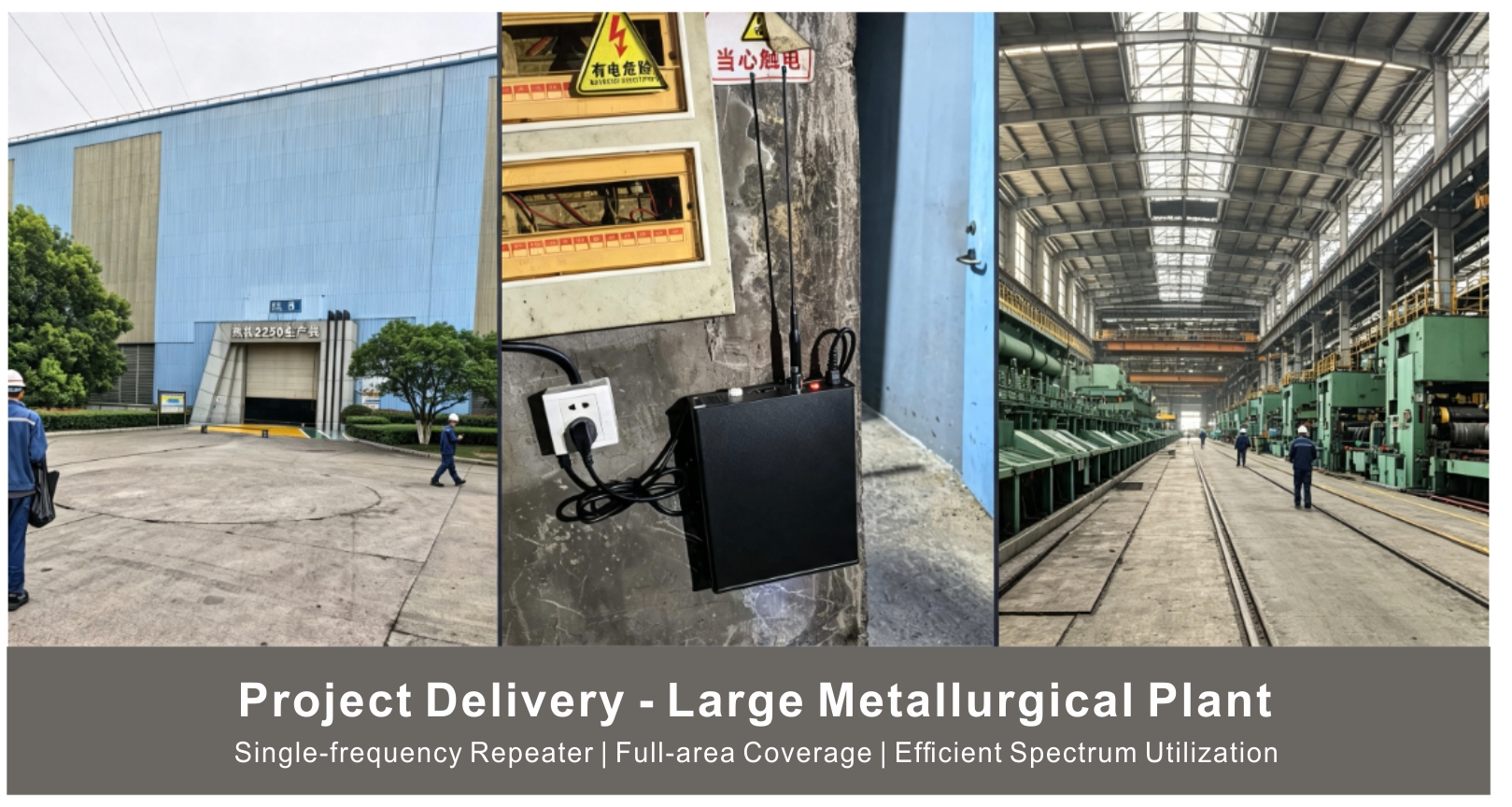

After the equipment installation and commissioning are completed, the project will fully cover the main smelting workshop, hot rolling production line, raw material yard, underground conveying tunnel, office building, and emergency rescue points, completely eliminating previous communication blind spots, and its practical value will be clearly visible.

1. Spectrum compliance upgradeThe single-frequency architecture significantly reduces spectrum resource consumption, aligns with the radio management department's policy of intensive frequency use, simplifies the license application process, and avoids the risk of multi-frequency occupation during the review process.

2. Full-area blind-spot-free communication20W attenuated transmit power + high receive sensitivity, easily penetrates heavy steel structures and high-temperature smelting equipment, ensures stable intercom signal at any point in the factory area, and synchronizes dispatch instructions in real time;

3. Deployment and maintenance costs decreasedLightweight equipment reduces installation and construction costs, eliminating the need for duplexers reduces investment in supporting equipment, and single-frequency point saves on long-term spectrum usage fees;

4. Safety production assurance improvementEncryption and authentication prevent information leakage; temperature control system ensures stable operation of high-temperature workshops around the clock; in the event of sudden equipment failure, fire, leakage or other emergencies, the emergency communication link throughout the plant remains uninterrupted.

5. Flexible expansion and sustainabilityWideband adjustable, portable and mobile, R-50 base stations can be quickly added for subsequent factory expansion and new production lines, and system expansion does not require reconstruction.

In addition to large-scale metallurgical and steel heavy industrial plants, the R-50 portable single-frequency digital repeater, with its core advantages of lightweight design, spectrum saving, and rapid deployment, is widely adaptable to private network communications in various industries.

• Industrial manufacturing: Fixed coverage for large factories, chemical industrial parks, and underground utility tunnels;

• Emergency response and disaster relief: temporary mobile communication support for earthquakes, floods, and engineering repairs;

• Public scenarios: airports, major sporting events, prisons, and basement signal coverage in buildings;

• Transportation infrastructure: tunnel and road construction, deployment of vehicle-mounted mobile relays.

As a brand deeply rooted in the field of private network digital communication, ABELL continuously focuses on real-world communication pain points in the industry, using DMR digital technology to innovatively solve common industry challenges such as limited spectrum resources, difficulties in covering complex environments, and cumbersome equipment deployment. The successful delivery of this large-scale metallurgical plant project fully validates the comprehensive capabilities of the R-50 portable single-frequency repeater in complex heavy industrial scenarios. In the future, Eurostandard will continue to provide lightweight, highly compliant, and highly reliable private network communication solutions, helping customers in various industries achieve efficient spectrum utilization and stable communication across all regions.

For detailed technical solutions and industry-customized networking consultations regarding the R-50 portable digital base station, visit our official website.www.abell.com.cn Get more product information.

The core support for the stable operation of this project R-50 Portable Digital Base Station
Featuring a unique ABELL single-frequency repeater technology, this mode requires networking with DMR digital walkie-talkies that fully support dedicated time slot scheduling according to ABELL to achieve unified communication and dispatching effects throughout the plant without signal confusion. In scenarios such as metallurgy, chemical industry, and large-scale factories with high requirements for communication consistency and spectrum compliance, the complete repeater + terminal combination can solve the dual challenges of full coverage and frequency control in one stop.

‍‍‍
