A780T High-end DMR Handheld Radio
  • 1/6

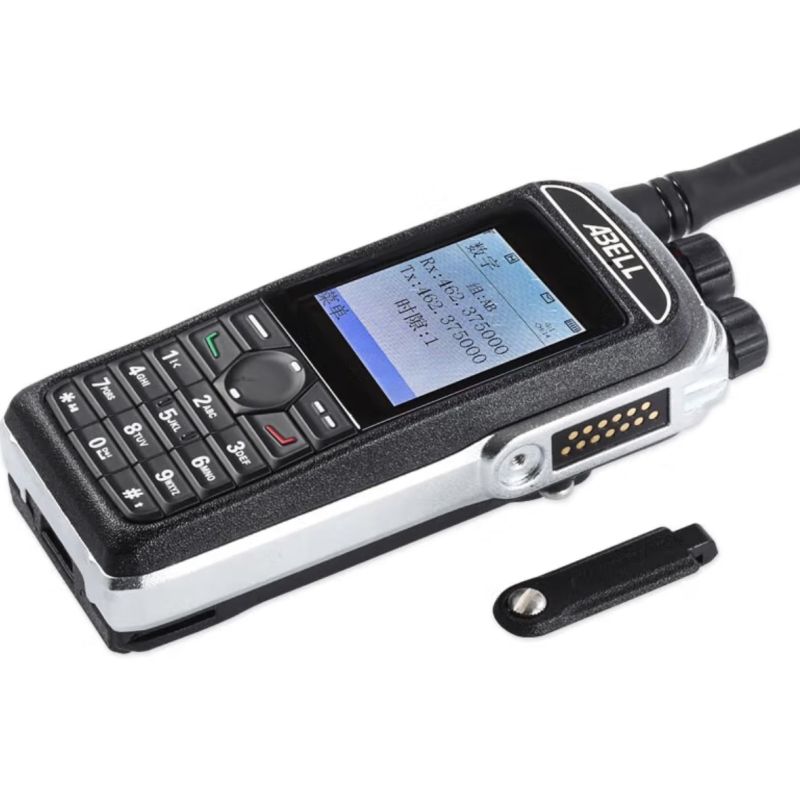

A780T High-end DMR Handheld Radio

A780T is a professional DMR & analog dual-mode radio adopting TDMA 2-slot technology. It doubles communication efficiency, enabling two simultaneous talking groups on one frequency to cut spectrum licensing costs and guarantee smooth communication during peak hours. Equipped with selective call, multi-functional remote control, DTMF landline/mobile phone dialing, Man Down and Lone Worker safety functions, it supports automatic repeater roaming, with optional real-time GPS positioning for all-round industry communication scheduling.
Inquire Now
DetailSpecification

Highlights

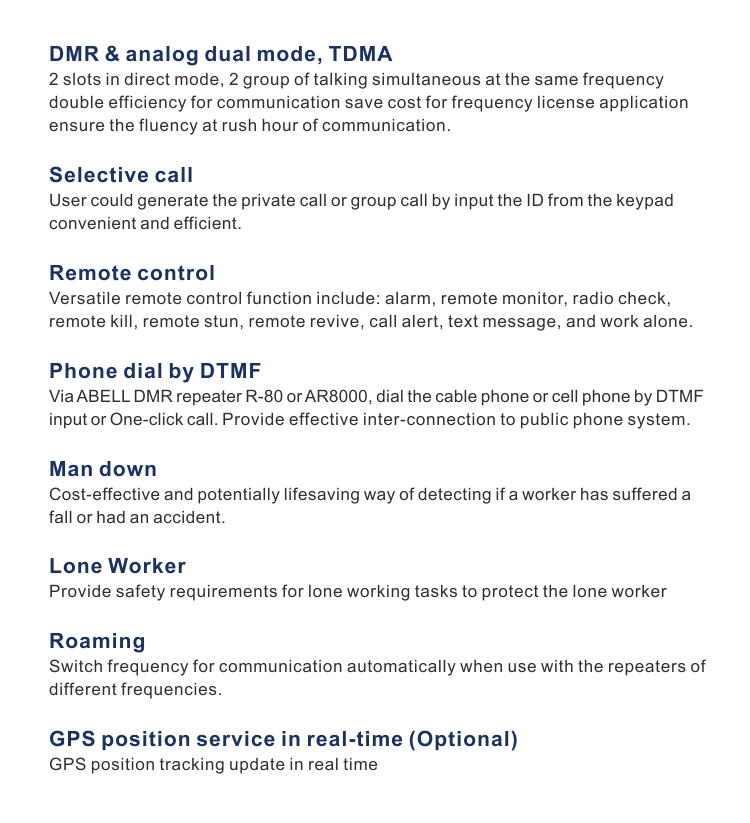

A780T DMR & Analog Dual-Mode TDMA Two-Way Radio

DMR & Analog Dual Mode, TDMA

Double Efficiency For Communication
2 Slots In Direct Mode, 2 Group Of Talking Simultaneous At The Same Frequency
Save Cost For Frequency License Application Ensure The Fluency At Rush Hour Of Communication

Selective Call

User Could Generate The Private Call Or Group Call By Input The ID From The Keypad Convenient And Efficient

Remote Control

Versatile Remote Control Function Include: Alarm, Remote Monitor, Radio Check, Remote Kill, Remote Stun, Remote Revive, Call Alert, Text Message, And Work Alone

Phone Dial By DTMF

Via ABELL DMR Repeater R80, Dial The Cable Phone Or Cell Phone By DTMF Input Or One-click Call.Provide Effective Inter-Connection To Public Phone System

Man Down

Cost effective And Potentially Lifesaving Way Of Detecting If A Worker Has Suffered A Fall Or Had An Accident

Lone Worker

Provide Safety Requirements For Lone Working Tasks To Protect The Lone Worker

Roaming

Switch Frequency For Communication Automatically When Use With The Repeaters Of Different Frequencies.

GPS Position Service In Real -Time (Optional)

GPS Position Tracking Update In Real Time




Model
:
A780T
UHF Frequency
:
350-390 MHz; 400-470 MHz; 440-480 MHz
Channel Capacity
:
1600 (100 groups, 16 channels per group)
Channel Spacing
:
25 kHz/12.5 kHz
Operation Temperature
:
-25°C~+60 °C
Frequency Stability
:
±2.5ppm
Operation Voltage
:
7.4VDC
Antenna Impedance
:
50Ω
Microphone Impedance
:
2.2KΩ

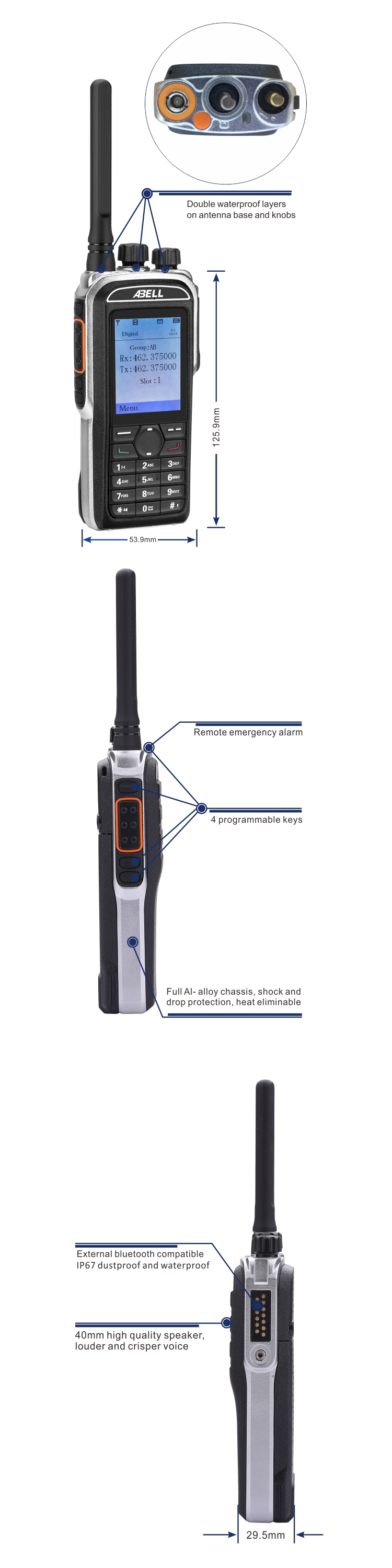

Dimension(HxWxT)mm
:
125.9mm×53.9 mm×29.5mm
