AR8000 DMR Repeater and System

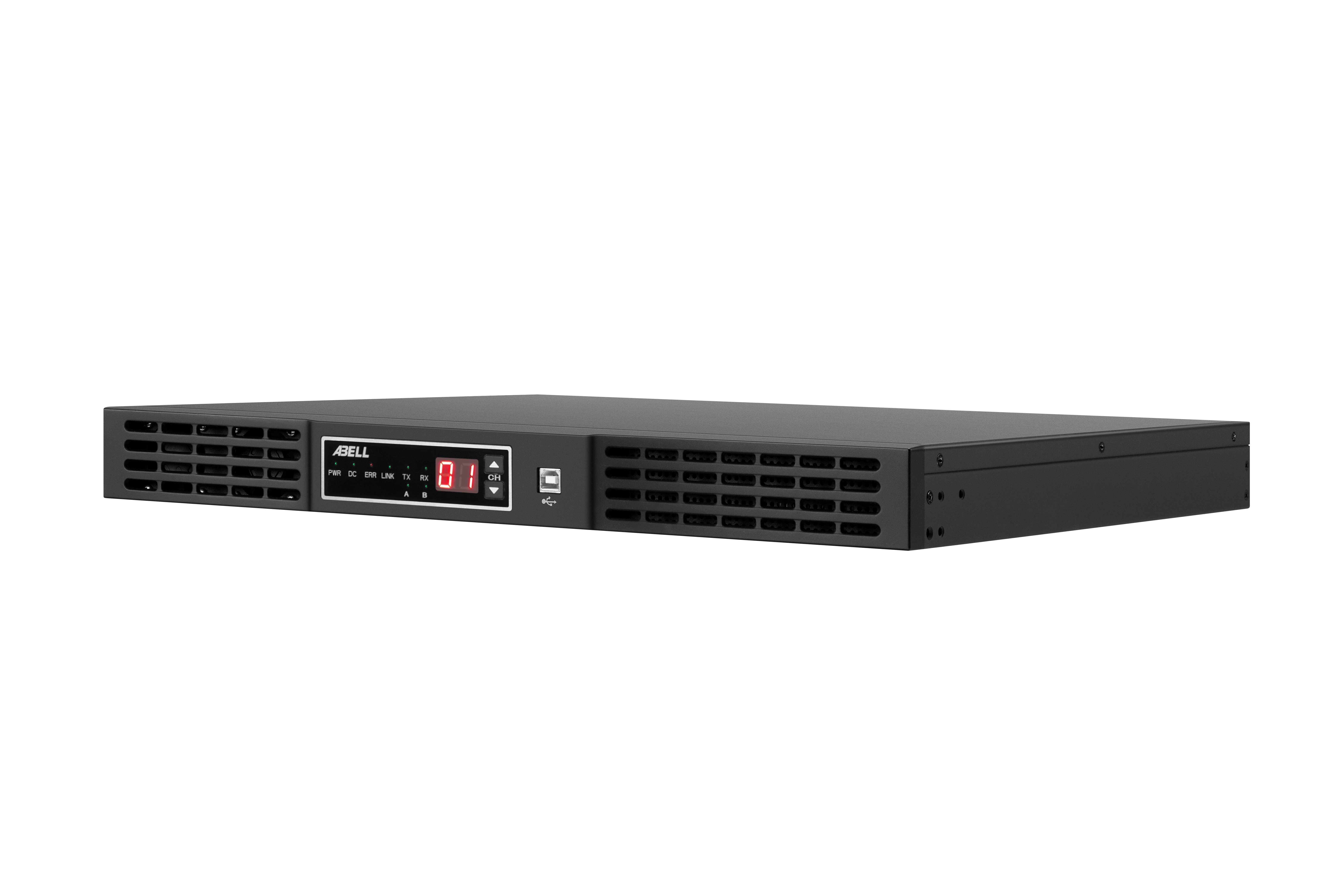

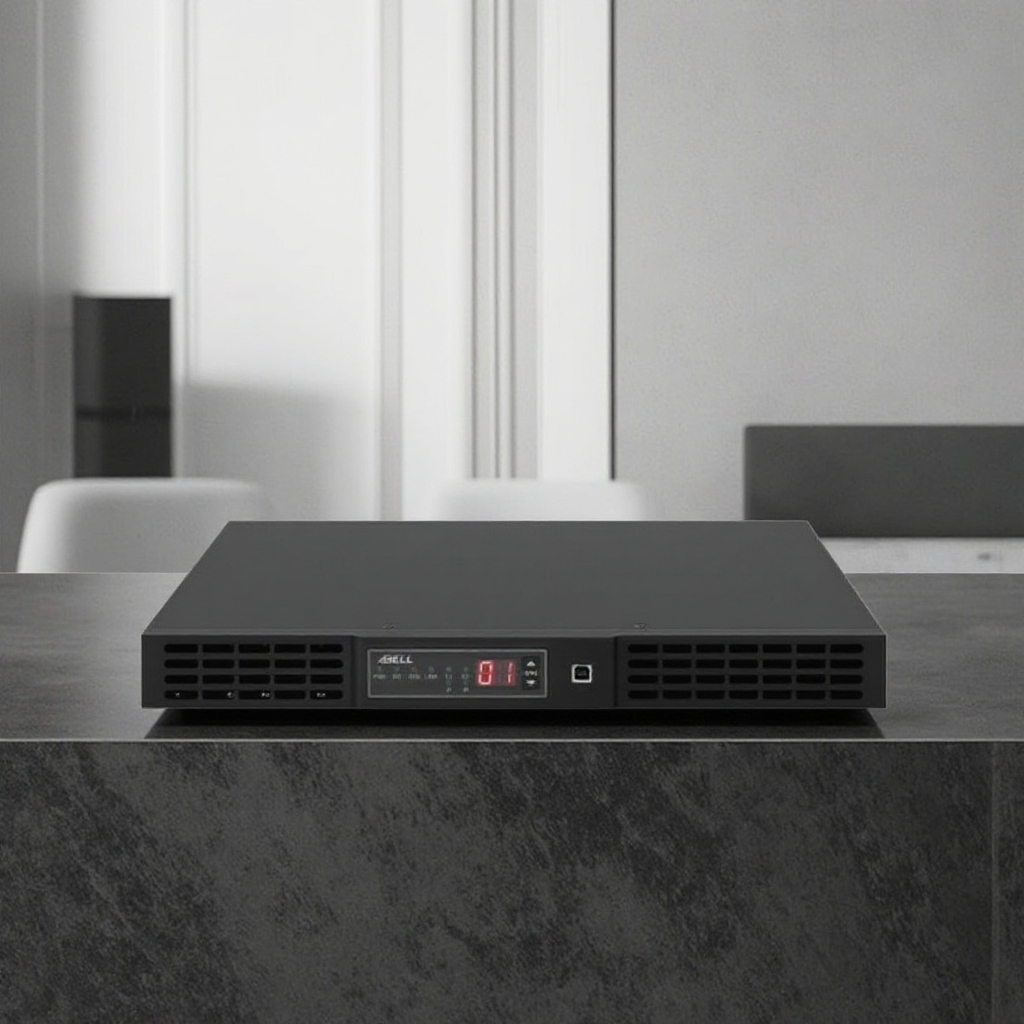

AR8000 New Generation DMR Repeater

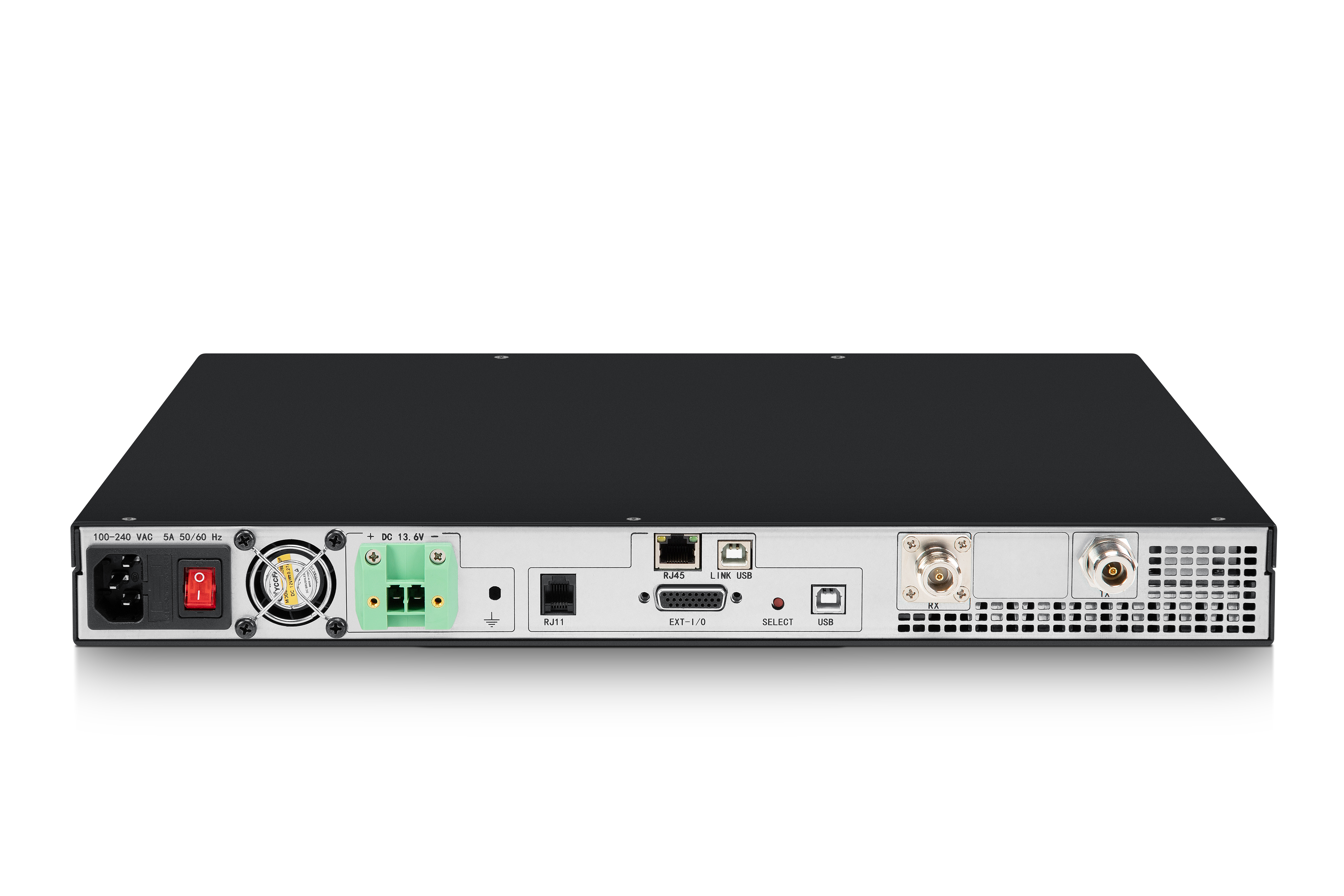

The AR8000 repeater adopts a modular design, integrating a high-performance RF module, a main control board, and a high-efficiency switching power supply. It is equipped with an external DC power supply interface, compact in size (1U), with a sturdy and compact structure and strong environmental adaptability, suitable for both indoor and outdoor installation. It is a high-performance professional-grade digital/analog repeater.

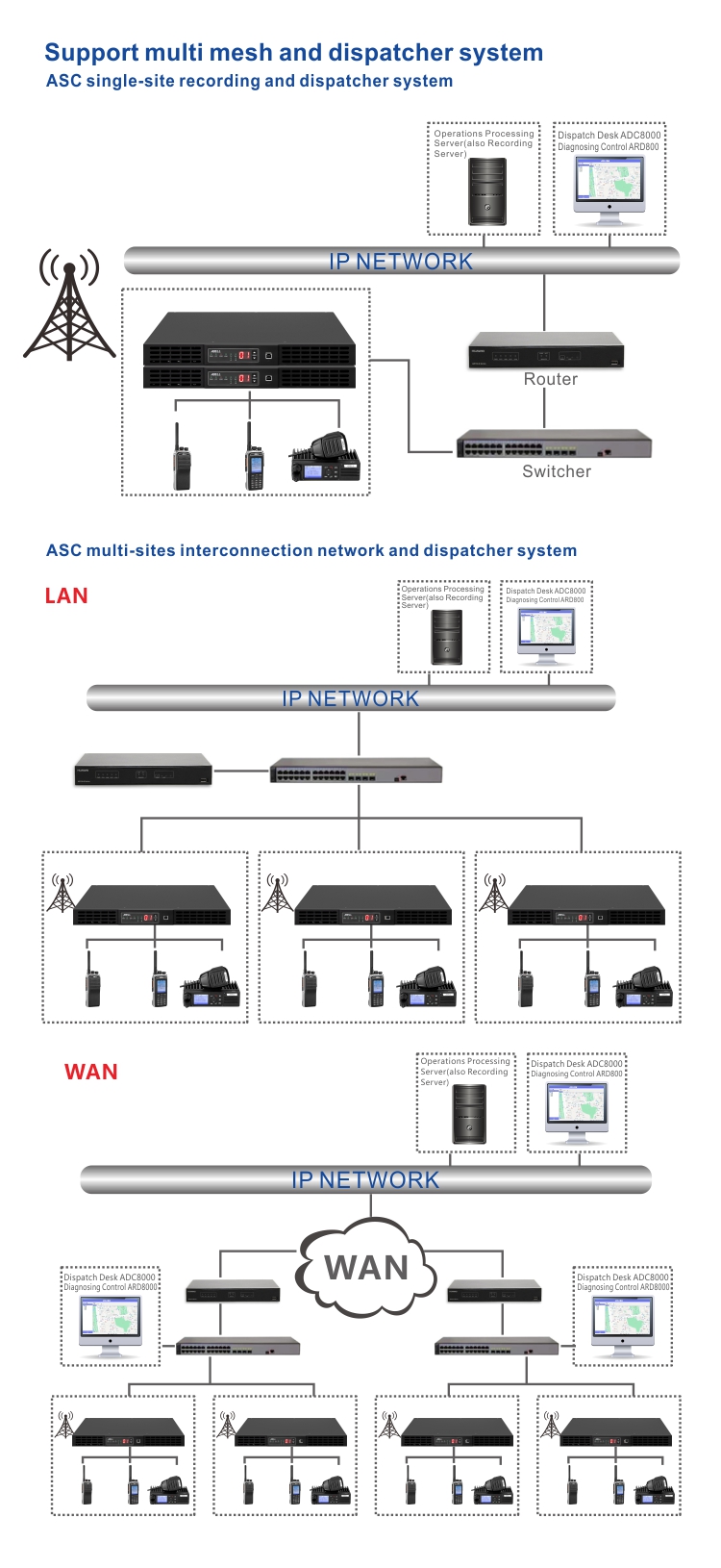

The AR8000 repeater provides DMR digital/analog wireless signal forwarding, supports multiple signaling protocols, and enables interoperability between walkie-talkies and wired telephones or mobile phones, expanding the scope of use. It supports Ethernet interconnection for multi-site networking, achieving large-area coverage at low cost.

Due to the modular design of the AR8000 repeater, it not only facilitates high performance but also makes maintenance, module replacement, and upgrades easy. The unit module-level interfaces are open, easy to standardize, and have good interchangeability. With the technological iteration of chip manufacturers, the AR8000 module can be quickly upgraded. It also facilitates secondary development applications for more service providers through module replacement.

The AR8000 repeater features comprehensive self-test/self-diagnosis functions and supports remote monitoring, facilitating repeater management. It supports automatic configuration for easy upgrades and maintenance.

General Features

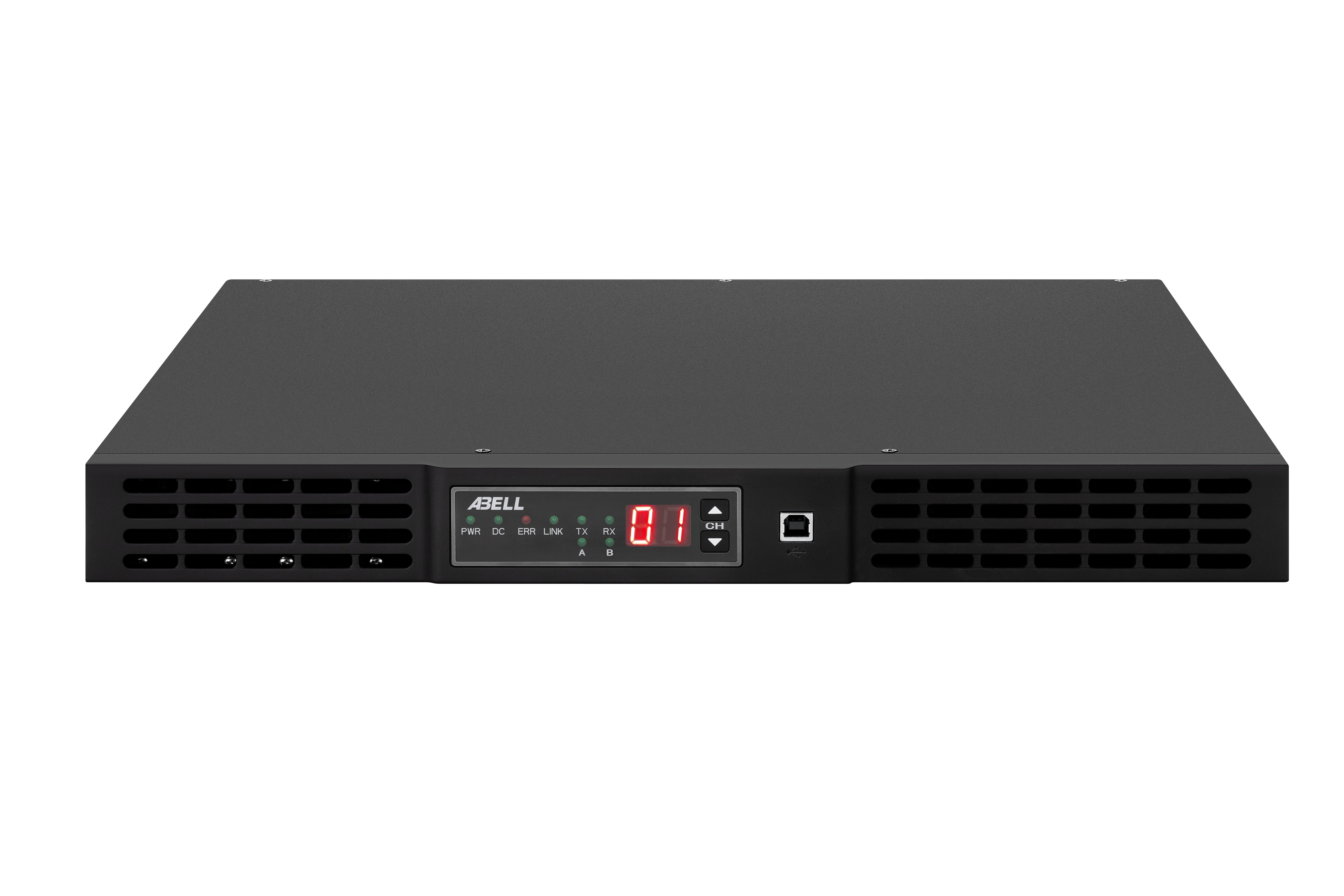

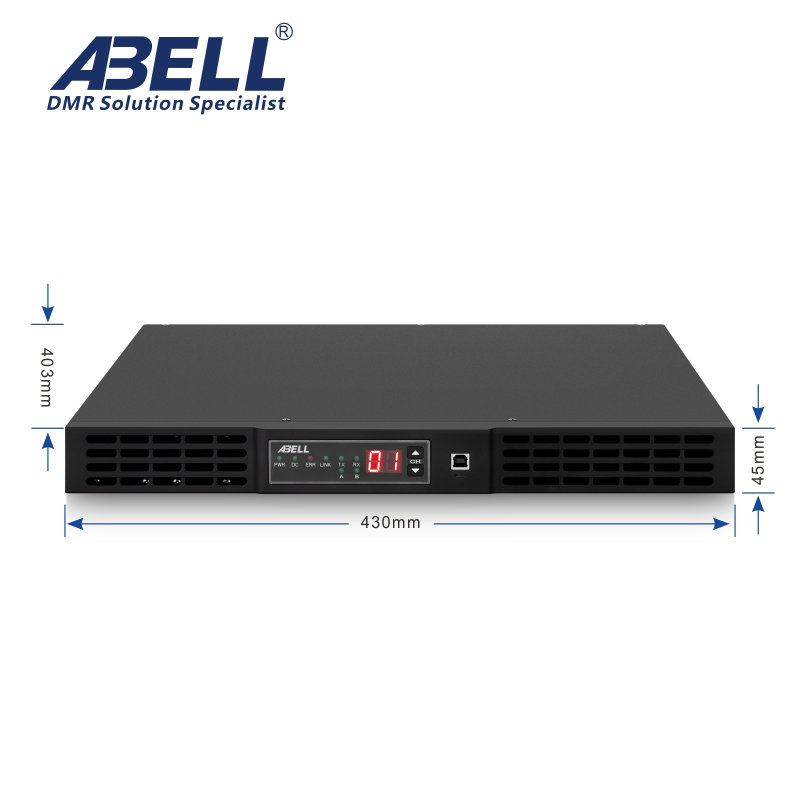

• Adopts a 19-inch 1U structural design, convenient for multi-channel integrated installation by users.

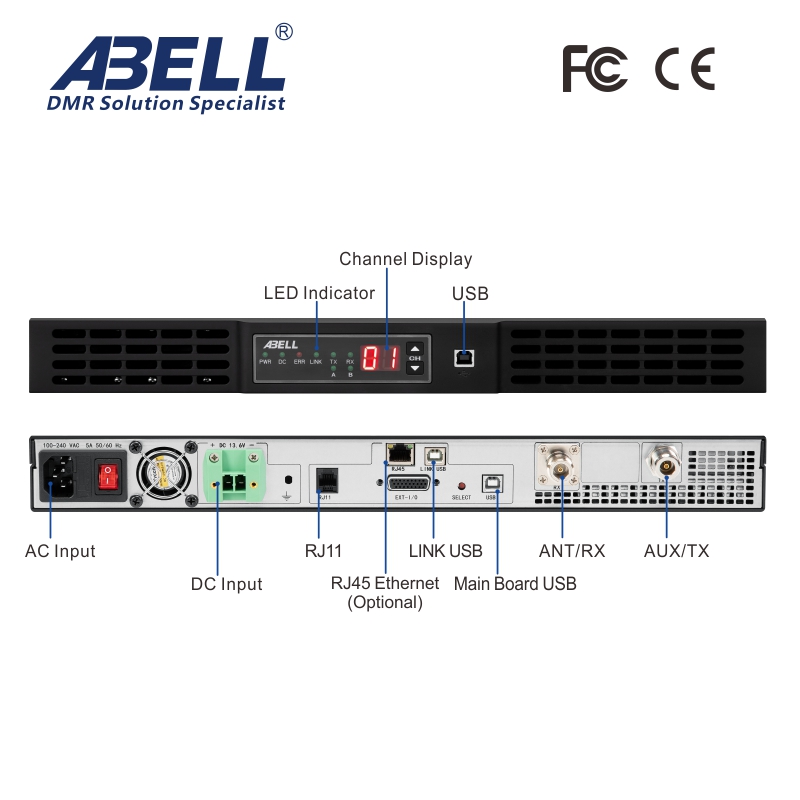

• Multiple channel capacities with status indicators designed.LEDlights and channel display.

• Supports fast analog signaling forwarding, supportsCSCSS/CDCSSsub-audio signaling forwarding.

• Antenna poor-contact protection to prevent communication degradation caused by improper antenna installation.

• Adjustable power output to improve coverage range and reliable communication probability.

• Fully modular design,Optimized RF performance,Easy inspection, replacement, and maintenance.

• Dual-fan automatic temperature control, supportinglong-duration operation design.

• PSTNwired telephone interconnection, enabling mobile phone/telephone communication with walkie-talkies.

• Supports keypad password protection to prevent misoperation and enhance operational reliability.

• Supports front-panelUSBprogramming port for customer convenience.

• Integrates multiple patented technologies.

Solution

As problem complexity increases, the means to solve problems also need to diversify. Therefore, customers often rely on the coordination of multiple systems and devices to resolve issues. Our AR8000 can provide multiple gateway functions to help customers achieve communication across different systems.

Achieve interoperability between public networks and DMR/analog systems through the public-private network converged base station AR8000.
